Here you will find your next flow meter – Made by the FLOXPERTS!
When 40+ years of Mag Flow Expertise meet 90+ years of Sanitary Sensor Competence:
After the integration of the GEA Diessel magnetic flow meter business, its sensor range, and specialized staff, Anderson-Negele has become your FLOXPERTS, your “FLOw eXPERTS” with the full range instrumentation for sanitary applications.
How can a flow sensor and a flow switch optimize processes, ensure product quality, and save costs?

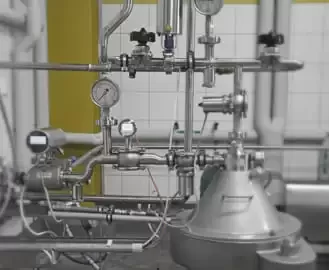

Flow sensors for the precise determination of the quantity or volume of media flowing into systems are the basis for safe and efficient processes in almost all applications in the food and beverage industry.
Typical examples are
- accurate dosing when mixing beverages or dairy products
- recipe control for mixed or soft drinks
- monitoring of production processes in breweries or CIP systems
- high-precision control of bottling lines
Flow switches are used in almost all production plants to monitor the plant’s technical safety and the correct operation of the processes. A possible malfunction of a pump, a closed valve, or a misdirected medium is reliably detected and signaled.
With various technologies, Anderson-Negele devices offer a suitable measuring system for every application, every process, and every fluid:
- Electromagnetic flow meters for media with minimum conductivity >5 μS/cm
- Turbine flow meters for all aqueous media, regardless of conductivity
- Ultrasonic flow switches for all media with turbidity > 1 NTU or particles > 50 μm
- Calorimetric flow switches for all aqueous media, even high-purity fluids, independent of conductivity
How can a flow control save costs?
Measuring the quantity or volume with the highest accuracy can directly save costs due to loss prevention and better use of resources. Indirectly a cost reduction is achieved by recipe optimization and improved control of the blending process. The specified quantities of the valuable resources are precisely adhered to so that the final product can be produced in an optimal and reproducible way in precisely the desired quality.
How can a flow switch save costs?
These monitoring devices are primarily used to avoid costs by minimizing risks. If a medium does not flow in a process due to a system error, this can cause significant damage. Pumps may run dry, CIP processes may not run according to specifications, mixing, and filling processes may be disrupted, all of which can lead to high plant or product damage. With these devices, such malfunctions are immediately detected, and countermeasures can be initiated.
What are the available measuring methods?
Essentially, the Anderson-Negele product line offers two measuring principles for the flow measurement of liquids: electromagnetic flow measurement and turbine flow measurement.
What is the electromagnetic flow measurement?
This electromagneteic measuring principle is based on Faraday’s law of induction. A constant magnetic field is generated by two field coils arranged vertically in the measuring body. The induced voltage is measured horizontally via two stainless steel electrodes. This voltage is generated, i.e., induced by the flowing, conductive medium. It is directly proportional to the fluid velocity and can be converted directly into flow volume. The measured values determined are available as a counting pulse, as a 4…20 mA standard signal and, in the case of IO-Link devices, also digitally.
Which products are suitable for electromagnetic flow measurement?
Starting from a minimum conductivity of > 5 μS/cm, the induced voltage can be measured. This technique is suitable for media such as milk, cream, beer, ketchup, sauces, creams, mash, molasses, yogurt, concentrates, cleaning media, and many others.
What is turbine flow measurement?
This measuring principle works with a non-contact pulse measurement. A turbine sits directly in the liquid flow and is set in rotation by its rotor blades through the flow movement. A signal probe generates an electromagnetic field via an oscillating circuit. The rotating rotor interacts with this field to create an induction current, which can be precisely measured and output by the probe.
Which products are suitable for turbines?
This technology with non-contact pulse measurement is the reliable, precise, and economical alternative to mass flow sensors or electromagnetic units. This measurement technology is also suitable for non-conductive, aqueous media such as filtered fruit juice or beer, alcohols, light oils, salt solutions, cleaning media, and acids, but also process water, demineralized water, and WFI.
What is a calorimetric flow switch?
The operating principle of the switch FTS is based on a temperature sensor attached to the sensor tip, which is periodically heated by a heating element. When the medium is stationary, a constant temperature difference ∆T between heated and unheated state is established. When the medium flows through, thermal energy is extracted from the heated temperature sensor, and the temperature difference changes depending on the flow velocity. In contrast to designs based on two separate temperature sensors, one of which is heated continuously, the measuring principle of the FTS with only one sensor and periodic heating enables a shorter response time due to the optimized heat transfer and the lower heat capacity.
Which products are suitable for a calorimetric switch?
This measuring principle is ideal for all aqueous products, including demineralized and highly filtered media such as cola and other soft drinks, filtered beer, demineralized water, as well as for media in pressure lines.
What is an ultrasonic flow switch?
A transmitter sends ultrasonic waves into the flowing medium. This ultrasonic wave hits particles, e.g., sediments, dirt, or air bubbles moving in the direction of flow and is reflected. The receiver now sees the reflected frequency slightly shifted as the wavelength changes due to the forward movement of the reflecting particle (ultrasonic Doppler principle). The difference between emitted and received frequency is a measure for the particles’ speed of motion and, thus, also a measure for the flow velocity.
Which products are suitable for an ultrasonic switch?
Many devices are limited to aqueous media. In contrast, the ultrasonic Doppler measuring principle is ideally suited for all media with the slightest turbidity or with air bubbles. This technique can be used when other technologies do not work, e.g., with dough, glycol, oils and oil-based media, adhesive or viscous media, creams, but also drinking water, milk, juice (unfiltered), and CIP media.
What is the Flex-Hybrid technology with IO-Link and 4…20mA parallel?
If you want to control the entire process plant technology with a large number of measuring, control, and operating devices, the digital interface IO-Link offers significant advantages over analog technology.
With its Flex-Hybrid technology, the FMQ flow meter combines the best of two worlds: data from the sensor can be transmitted in a digital, or analog way, or parallel in both technologies. This creates a significant advantage, especially in times of technological change from today’s analog to digital IOT generation: If, for example, you currently still control a system in analog mode, but consider a conversion to IO-Link, you no longer need to make a decision. Instead of “either … or”, Anderson-Negele uses the word “and”. Simply by connecting a new cable, the sensor can be switched to digital at any time later without even touching the hardware or the settings. Installation and commissioning are extremely time- and cost-saving. For the signal transmission and the power supply itself, a three-pole standard cable without shielding is sufficient.
What does sanitary design mean?
- Process reliability in every installation situation: Our products are developed for a smooth process in your plant and are suitable even for the most challenging process environments. For example, the design without dead legs ensures sanitary CIP / SIP cleaning at all times.
- Long-term reliability through robust design: Our devices can withstand extreme mechanical stress as well as the most challenging environments, e.g., through CIP / SIP resistance or protection class IP 69K.
- “SANITARY BY DESIGN” through material quality: All components in contact with the media are made of stainless steel 1.4404/1.4435, PFA, or solid PEEK.
- Tested and certified: The guidelines of the North American 3-A (3-A Sanitary Standards Inc.), the EHEDG (European Hygienic Engineering & Design Group), and the FDA (Food and Drug Administration) are the standard by which we develop all our products
