Setting new standards in Level and Pressure Control: L3 Neo is now available
20 Mar 2024

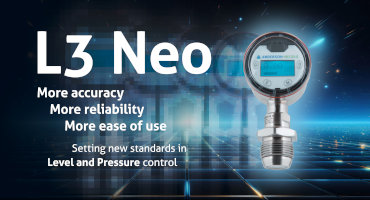

L3 Neo, the next generation Level and Pressure Transmitter, is the new benchmark for process control in Food, Beverage and in Life Science industries:
Superior accuracy due to minimum temperature effect
Direct output of volume, level, or pressure
Integrated tank linearization and density compensation
New electronics and robust design for toughest productions environments
Flex-Hybrid Technology (IO-Link + 4…20 mA in parallel)
PHARMA version ASME BPE 2019 compliant, with Ra ≤ 0.2 μm (8 μin) / 3.1 inspection certificate and calibration certificate available

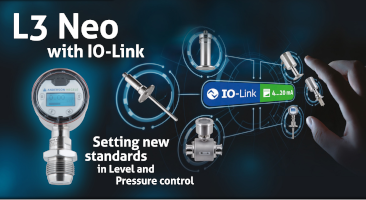

Your key to more efficiency in Food and Beverage production and the Live Science industry. Now with IO-Link
With L3 Neo completing our digital sensor range you can operate nearly every process step and skid exclusively with IO-Link. Experience the great benefits of digital communication:
Up to 50 % less cost and installation time for cabling
Only one software for programming and configuration of all devices
Real “Plug & Play”: automatic sensor configuration transfer in case of replacement
L3 Neo Accuracy

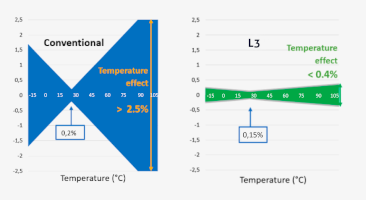

With its exceptional performance characteristics, the L3 Neo is particularly suitable for level and volume measurement. This applies specifically for smaller vessels or for high and changing process temperatures for which pressure sensors were previously not considered precise enough. The precision of the L3 is based on the calibrated measuring range, with an accuracy of 0.1 % (5:1 turndown) or 0.15 % (10:1 turndown). Conventional sensors show a temperature drift of up to 0.4 % per 10°C. At 110 °C, the temperature effect is > 2.5 %!
The L3 Neo shows a temperature drift of only 0.03 % per 10 °C due to its reference on the calibrated measuring range. At 110 °C the temperature effect is < 0.4 %.
