How can Anderson-Negele sensor technology help optimising the brewing process?
Every brewer has the aspiration to offer his customers a consistent, distinctive beer experience. But he also has to ensure an economically successful operation of the business by permanently optimising processes, resource consumption and costs. It is an expression of the art of brewing to achieve both at the same time for a product that is subject to so many influences and has such a wide variety as beer.
Intelligent measurement technology can help ensure consistent product quality even with fluctuating ingredient qualities throughout the brewing process, automate processes, minimise energy, and resource consumption, and avoid production downtime. Take a look at our product portfolio and compose your “dream sensor technology”.
As diverse as the raw material quality, the recipes and the procedures in the brewing process are, so are the requirements for the measurement technology. That’s why we offer a complete sensor program, each with a wide range of variants and options, so that you get exactly the performance you want for every application and every plant, from the brewhouse to the fermentation cellar, and from craft breweries to large industrial breweries – no more and no less.
Which sensors does Anderson-Negele provide for the brewing process?

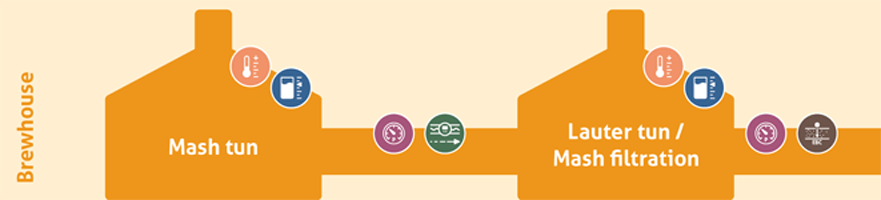

Temperature Sensors ensure precise control of the resting temperatures as required by the individual brewing recipes.
Point Level Sensors ensure full/empty detection of the mash tun. Our tip: The NCS capacitive level sensors are more hygienic and easier to clean than fork sensors, and thanks to their short response time they reliably prevent the tank from overflowing and the pumps from running dry, even in double-walled tanks.
Lautering is often the bottleneck in the brewing process in terms of time; every minute saved in lautering increases overall efficiency. High-precision inline analysis of the wort also helps control the raking and thus accelerate this factor that limits the brewing process.
A Turbidity Sensor can be used to replace visual control of the wort clarity and manual transition. Automatic lautering or sparging upon reaching a predefined turbidity value guarantees consistent wort quality and optimisation of process time to the perfect minimum.
A Flow Sensor can control the pump-down speed of the wort in recirculation and in lautering, even with fluctuating spent grains resistance, and thus help monitoring the wort quality.
Pressure Sensors provide control of the filter function/porosity and the permeability of the filter cake through differential pressure measurement.
Temperature Sensors help achieving optimum wort viscosity.
Point Level Switches ensure full / empty detection of the lauter tun.
The plate-and-frame filter is a faster alternative to the lauter tun, with further requirements on process control and measurement technology for a trouble-free filtration process.
A Flow Sensor can monitor saturation or optimal function of the filter cloths by measuring the flow velocity upstream of the filter.
Pressure Sensors provide control of the filter function and permeability of the mash filter by measuring differential pressure.
With a Turbidity Sensor after the mash filter, the filtration result can be monitored automatically for optimum wort quality.
Temperature Sensors help achieving optimum wort viscosity.
Brew Kettle / Copper:
To achieve the desired original gravity by evaporating water is the goal.
The level, pressure and temperature must be controlled with the utmost precision. Foam that forms as a result of wort boiling and the addition of hops must not influence the measuring technology.
NSL Potentiometric Level Sensors measure the level precisely and without the influence of foam.
Point Level Switches type NVS are used to prevent the brew kettle from overflowing or running dry.
For Flow Measurement, various models are available, depending on the requirements for measuring accuracy.
For hot tub removal in the whirlpool we offer temperature and level sensors.
A flow meter for inlet control helps to monitor the inlet velocity for optimum trub cone formation.
A Turbidity Sensor at the outlet helps to ensure that all solids have been removed from the wort so that the following process steps will run without disturbances with clarified green beer.
Wort Cooler / Plate Heat Exchanger:
A heat exchanger cools down the hot wort rapidly. Precise temperature control and trouble-free flow of both green beer and cooling medium are important here.
Temperature Sensors ensure monitoring of the thermal exchange function with the specific dwell times and cooling rates to achieve the required wort-out temperature.
Pressure Sensors measure the pressure at the inlet and outlet so that any deviation from the target, and thus any possible malfunction, is immediately signaled as an alarm.
After the yeast has been added, the beer matures in the fermentation tanks. To ensure that the flavour and aroma substances can develop in the desired manner for reproducible beer quality, the fermentation conditions must be maintained with the utmost precision. This includes relevant factors such as wort composition, aeration rate, yeast cell count, yeast strain, yeast management, temperature, and pressure. Today’s fermentation tanks, most of which are closed, must be monitored for overpressure in addition to monitoring the fermentation itself.
Depending on the type of yeast and fermentation, the different fermentation temperatures must be maintained very precisely, monitored by Temperature Sensors.
Point Level prevent overflowing of the fermentation tanks.
Further Pressure Sensors are used to monitor the CO2 level during bunging of the beer.
Many types of yeast can be reused several times and can be harvested after the fermentation process. A distinct separation of dead yeast and different qualities of reusable yeast is essential in this process. Turbidity Sensors can be set to automatically direct the different layers of yeast into the correct containers for reuse or disposal during yeast harvesting. This ensures quality consistency and saves labor time, as otherwise a brewer would have to perform visually-manually yeast rejection at the sight glass.

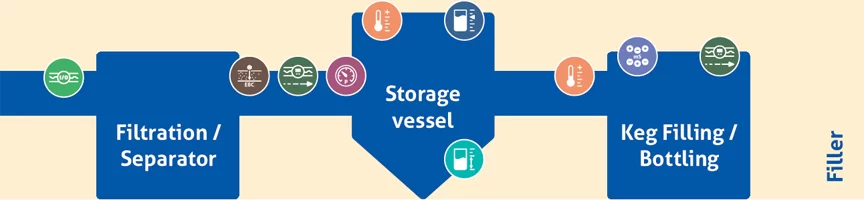

Filtration / Separator:
Depending on the type of beer, turbidity is partially or completely filtered out of the suspension before storage. This can be done by diatomaceous earth filters, crossflow filters, candle filters or centrifuges / separators.
In all cases, Turbidity Sensors help to generate the desired degree of turbidity or purity of the filtrate in a reproducible manner and to monitor the filter system.
Pressure Sensors monitor the function and report malfunctions that become noticeable through deviations from the target pressure.
Flow Sensors measure the volume of beer in the process.
Storage / Conditioning Vessels:
Temperature Sensors, Hydrostatic Level Sensors and Point Level Indicators ensure that the beer, depending on the type, can be matured and conditioned to a ready-for-sale product at the defined climatic conditions and times.
Different filling systems are used for bottles, kegs, and cans. During bottle cleaning, sensors help to monitor the quality of the cleaning and the cleaning agents.
Magnetic-Inductive Flow Sensors can be used for keg filling control.
Conductivity Sensors detect products and ensure that beer ends up in the bottle, keg or can and rinsing water ends up in the drain, and that the caustic concentration in bottle washing complies with the specifications.

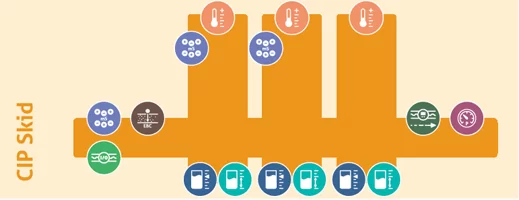

CIP systems for a brewery can be central or decentralised. For improved efficiency, the return flow of the media can be monitored for the degree of contamination by analysis sensors. This allows the expensive cleaners to be automatically returned to the batch tank when the degree of contamination is low, and low-contaminated rinse water can be re-used for pre-rinsing in the next process. With conductivity measurement the cleaner concentration can be monitored and controlled automatically. In our “Solutions” / “CIP Control” section, you will find all the details on how intelligent sensor technology can contribute to resource-efficient and reproducible CIP processes.
How can measurement technology help to save energy?
Energy consumption is influenced by temperature, process duration and media quantity. A temperature that is slightly too high, or too low in the fermentation cellar, can already mean costs of several hundred Euros per year. If the lautering process runs for 10 minutes too long, energy is also wasted here. A CIP process that lasts longer due to time control, even though the desired degree of cleaning has already been achieved, also consumes resources and energy unnecessarily. Plate heat exchangers and vapour condensers can in turn be used for energy recovery.
High-precision sensors with active output for process control and automation can help preventing energy losses and optimising energy recovery.
Our tip: Examine all processes for their optimisation potential. We will be happy to help you on site. Just contact us.
What advantage do remote sensors offer?
Many of our sensors are available as “remote” version. The actual measuring device and the electronics unit with operating display are separated. This protects the electronics from vibrations and high temperatures and can significantly increase the service life. It is also extremely practical, as you can simply place the electronics and displays where it is most convenient and accessible for easy and quick reading or programming.
Our tip: Get the perfect overview of all processes and vessels without having to bend down or walk around and ensure easy programming and longer service life with remote sensors.
How can analytical sensors contribute to process automation?
Many processes in the brewery are based on a differentiation according to turbidity, conductivity, or concentration. In practice, deviations in these criteria are often not easy to detect. But they are crucial for the quality of the product, and for the efficiency of the process. Analytical sensors are your “eye in the pipe”, your view inside the process, and can automatically control the process through an active output. This can replace manual sampling or time-controlled phase changeovers.
Our tip: In multiple processes such as lautering, yeast harvesting, whirlpool, bottling, and CIP control, this allows you to save working time, avoid product losses, reduce the amount of wastewater, ensure consistent quality, and ensure that the beer ends up in the bottle and the rinse water in the drain. Just move to our “Solutions” / “Process Analytics” section to find all details.
What exactly does “Hygienic by Design” mean?
Anderson-Negele products are designed and built exclusively for food applications. Therefore, they meet all requirements for hygiene sensitive production areas from the very beginning, as evidenced by certifications such as 3-A and EHEDG. This means maximum hygienic protection of your products, easy equipment cleaning, and ultimately maximum peace of mind and safety for your customers.
Our tip: When it comes to process connections, we also offer a wide range of solutions that ensure hygienic integration into your plants through dead space-free design and superior material and surface quality. With CLEANadapt and FLEXadapt, we have specially developed process connection systems that simplify hygienic installation and operation and can even be retrofitted.
What can digitisation with IO-Link do?
Most Anderson-Negele sensors with IO-Link are equipped with “Flex-Hybrid Technology“, i.e. digital IO-Link and analog 4…20mA communication in parallel. Even if the plant is operated analog, you can commission all sensors with only one software via computer. Specific programming can be easily transferred to other sensors by copy-paste. And in the case of a sensor exchange, the entire individual programming is transferred simply by plugging it in.
Our tip: With Flex-Hybrid Technology, you already have advantages in installation and commissioning. And if you switch to digital IO-Link technology later, there is no need for new sensors. Find out all about our IO-Link solutions in our “Solutions” / “IO-Link” section or at the IO-Link website.
And does all this really work in practice?
Many customers use our sensors under a wide variety of everyday requirements. Discover how other breweries are successfully overcoming their challenges with Anderson-Negele sensors. Our case studies show examples where we have been able to help our customers achieve their goals through application consulting, product testing or technical support. You can find our case studies and application reports online here.
Our tip: Our case studies can give you a small overview of the variety of applications where intelligent sensor technology, used correctly, can make your work easier, improve quality and reduce costs. We would be happy to visit you to find answers to your questions on site. Please contact us!
What benefits do Anderson-Negele sensors offer for the brewing process?
They are essential in almost every step of the brewing process and for CIP control. That is why we offer our TS sensors in 2 standards (Big and Mini), with a comprehensive performance range and an almost infinite variety of customisation, process connections and options.
Different temperatures, different vessel shapes, sometimes pressurized, different densities, differently foaming media, different turbidity and solids contents – highly different requirements and dynamic changes influence the control of the filling level of your various vessels and containers. However, at all times you need to know exactly how much product is in the vessel or ensure that a vessel does not overflow or run dry. That’s why we offer different measuring techniques and many different designs and options, so that you get the best solution for every purpose and application.
Keep optimum control of process or vessel pressure at all times. Mthanks to many sensor options you always find the most suitable solution for every application, every requirement and every desired pressure measuring range, be it as an on-site display or for PLC connection.
Here is how you maintain control over your brewing recipes and the technical safety of your plant: Precise flow control with electromagnetic flow meters shows you in every process step, from the mash tun to the keg filler, exactly what volume of media is flowing in the processes. Flow monitors give an alarm when the flow stops and are ideal for monitoring pump systems, filters, cooling circuits, the CIP return or for detecting misdirected media. The FWA also offers the output of the flow velocity with approx. 10% accuracy, in many cases sufficient to spare more expensive flow meters.
Do you want to start lautering at the perfect moment, saving time and energy? Ensure maximum reusability during yeast harvesting? Achieve maximum separator effectiveness? Reuse weakly contaminated CIP media and thus save costs? Minimise wastewater costs through pollution monitoring? Maintain precise product quality? Then our turbidity sensors are your perfect solution.
For a wide range of sensor types, our connection systems offer a consistent hygienic installation concept: High-quality stainless steel or PEEK for all wetted components, simple and secure screw connection or even installation in thermowells for sensor removal without disrupting the process.
Turn your vessel into a precision scale. When integrated level control systems reach their limits, load cells come into play. In the process as a load disc for installation under the vessel, or for barley silos as a bolt-on load cell on the vessel support construction.
Your key to greater efficiency: sensors with IO-Link in Flex Hybrid technology. These make planning, commissioning, and operating your plants easier, faster and more flexible. For existing analog plants, Flex-Hybrid means easier programming, sensor changes with “plug-and-play”, and if you upgrade to IO-Link control at some point, the sensors are changed over just by plugging them in.

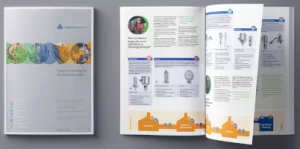

We have summarized in an overview brochure how we at Anderson-Negele can support you in optimizing your brewing processes:
