What is the key to happiness? A correct level!

New Whitepaper: How to find the most convenient level sensor for any application, product and process in the food and beverage production

9 Sep 2024

For maximum resource efficiency, precise and continuous level control and output of volume or mass in all storage, maturation, upstream or other process containers is a basic requirement. The range of measurement systems is as large as it is confusing. Hydrostatic and potentiometric measurement systems as well as weight measurement have proven to be particularly reliable, precise and suitable for the requirements in beverage and food production. But which systems are best suited for which application?

We collected all details in a new Whitepaper, providing an overview. You can find the download link below.

Level up your level control

The suitability of level measurement methods for hygienic processing depends on a number of different factors. The most important are:

1. Type, size, shape, material and orientation (vertical / horizontal) of the vessel
2. Required measuring accuracy
3. Material properties of the media (liquid, pasty, bulk material, adhesive, foaming, conductive / non-conductive, carbonized, with turbidity or solids content...)
4. Media temperature and its dynamic changes
5. Media density and its dynamic changes
6. Changing media or always the same medium in the process / tank
7. Location (outside, inside) and climatic requirements (condensation / humidity) for the measurement technology
8. Pressure environment (atmospheric pressure, pressurized tank / differential pressure measurement)
9. Data output (indication on display, communication analog / digital / logging system)
10. Installation, accessibility, and maintenance requirements (process connection / service life / repairability)

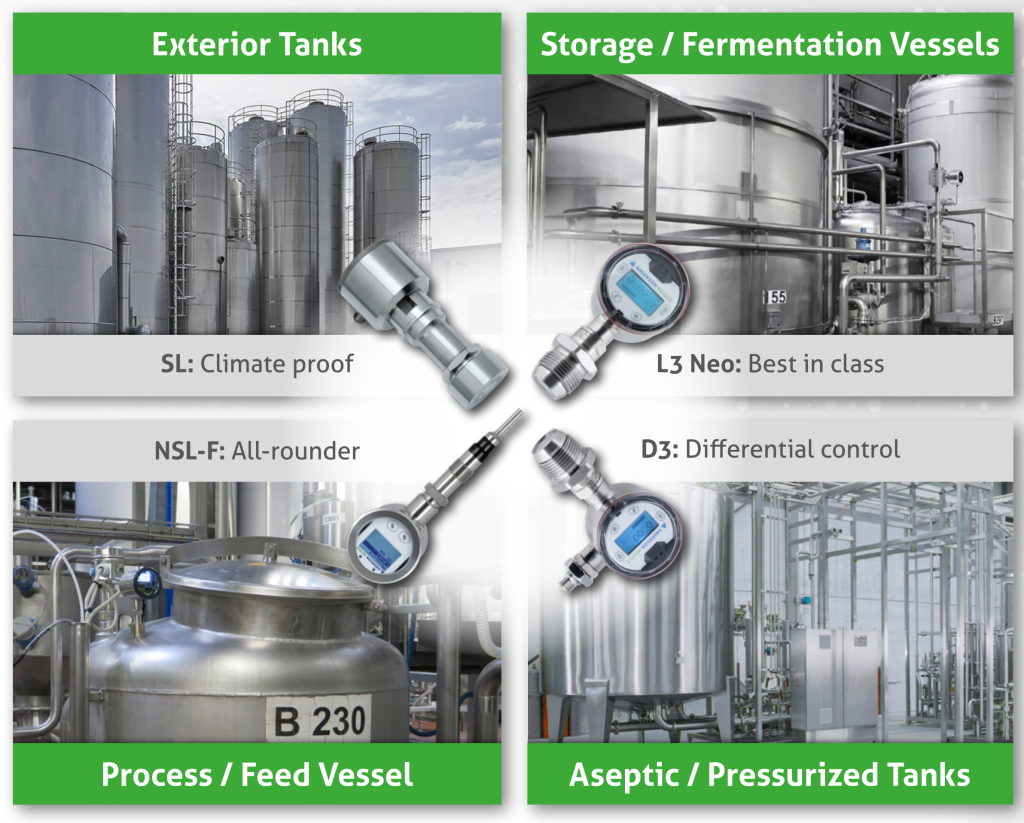

Overview of applications and measuring systems

To meet the diverse requirements of our customers and provide the best solution for each application we offer different measuring techniques and configurations/options. Overall, our expertise in these measurement systems and our ability to provide customized solutions ensures maximum resource efficiency for our customers in the beverage and food production industry.

Hydrostatic measurement: In this technique, the fill level is measured by pressure transmitters at the bottom or top of the container and displayed and/or output to the PLC. For aseptic or pressurized tanks the level control with a Differential Pressure Sensor offers a suitable solution.

Potentiometric measurement: These sensors are mounted on the top, the side or the bottom of a tank, with a rod which extends into the liquid. They determine the fill level by changes in the voltage ratio in the measuring rod.

Weight measurement: The mass of the container and its contents is determined by using strain gauges or pressure cells which measure the change in pressure on the legs of the vessel/silo.

In addition to the application and the measurement technology itself, there are other parameters that must be considered when deciding on a system or product, such as:

1. The hygienic design of the sensor and process connection
2. The lifespan of the components
3. Resistance to chemical or mechanical stress
4. Basic measurement accuracy
5. The impact of temperature drift
6. Display requirement on site / via remote display / PLC data transmission only
7. Data transmission (analog / digital)
8. Simple operation, etc.

Due to the variety of different requirements, we offer diverse measurement techniques and configurations/options to ensure that you get the best solution for each application.

Whitepaper

In a new whitepaper we give an overview of all requirements, the various available technologies and a table showing which measuring system can be recommended for which applications in the hygienic Food and Beverage Industry.
