TSMF Temperature Sensors Mini
Temperature Sensors, CIP Controls, IO-Link
Mini sensor series of the new TS generation: extremely flexible, modular, user-configurable │ with IO-Link
- Flex hybrid technology with a digital and analog interface (IO-Link + 4…20 mA)
- Superior quality level in temperature range, measuring accuracy and temperature resistance
- One-piece design entirely in stainless steel for maximum long-term stability and application reliability
- Consistent modular design for easy individual configuration
- Flex-Hybrid technology offers maximum flexibility and future compatibility in new installations
- For retrofitting in existing installations, any mini-sensor of the TFP series can be replaced – with all the additional advantages
- A suitable model is always available for replacement of third-party devices
- All details about IO-Link properties, parameters, diagnostics, events and more can be found in the IODDViewer. Just click here.
- Add-On Instructions (AOI) are available at www.anderson-negele.com/aoi
TS is the fully compatible successor of the existing TFP series
Click here to find out which TS sensor corresponds to the TFP sensor (PDF).
Technical Specification
| Process Connection | CLEANadapt │ Tri-Clamp │ Varivent │ FLEXadapt ESF │ Thread | Without thread |
| Insertion length | 0…2000 mm (flush version available) |
| Wetted material | Stainless steel 1.4404 (AISI 316L) │ PEEK (Dependent on type ) |
| Measuring range | -200 °C …+400 °C |
| Accuracy | < ±0.1 °C/°F |
| Available versions | Head Ø18 mm │ Spacer │ Transmitter |
| Operating pressure | max. 50 bar | 10 bar (Dependent on type ) |
| Communication | 4…20 mA, IO-Link |
| The values shown are the performance limits within the product line. The product-specific data for each individual configuration can be obtained from the product information | |
Application
Videos
Temperature sensor TS: Overview of configuration options

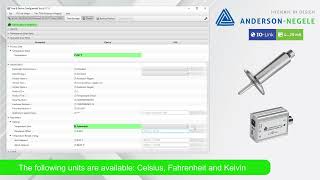

Configuration with IO-Link
Download
User Manuals:
Process Connection
