Dairy Applications
COW Water Monitoring with an ITM-4 Turbidity Sensor
Dairy

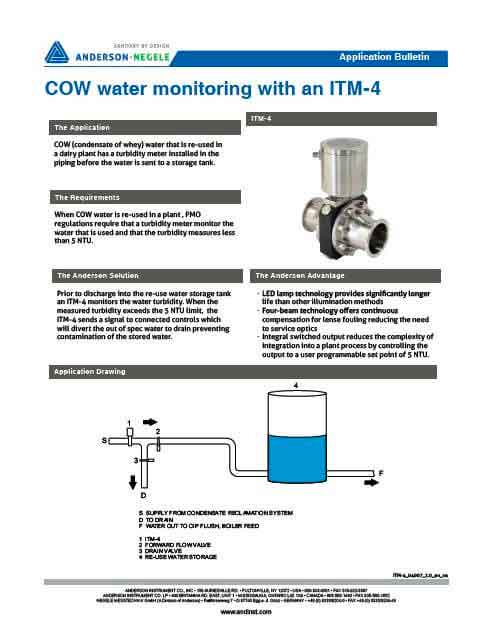

Application Brochure:
Application Detail
The Application
COW (condensate of whey) water that is re-used in a dairy plant has a turbidity meter installed in the piping before the water is sent to a storage tank.
The Requirements
When COW water is re-used in a plant , PMO regulations require that a turbidity meter monitor the water that is used and that the turbidity measures 5 NTU or less.
The Anderson-Negele Solution

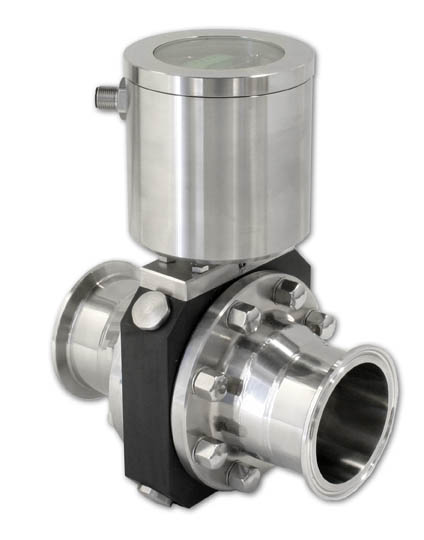

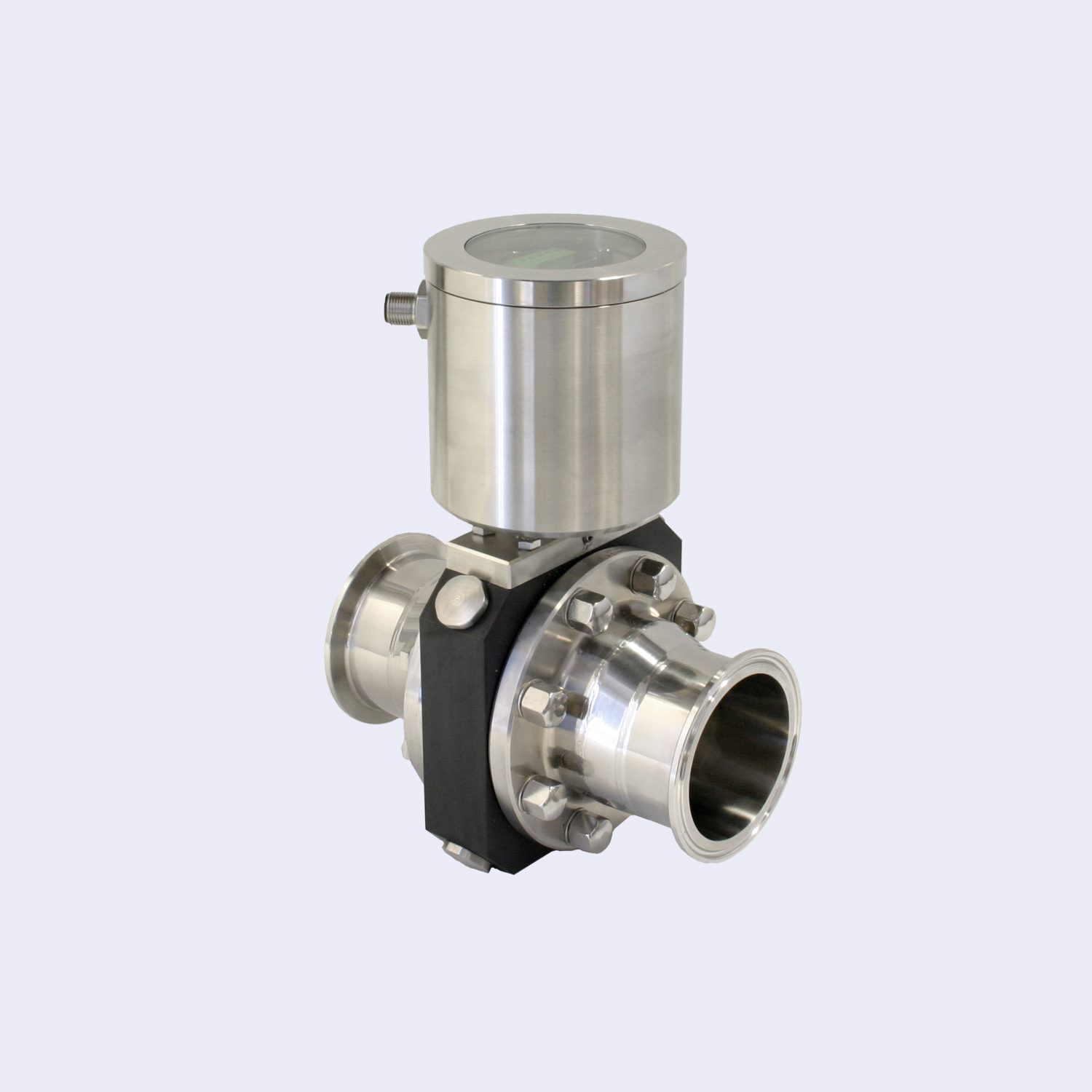

Prior to discharge into the re-use water storage tank an ITM-4 monitors the water turbidity. When the measured turbidity exceeds the 5 NTU limit, the ITM-4 sends a signal to connected controls which will divert the out of spec water to drain preventing contamination of the stored water.
The Anderson-Negle Advantage
- LED lamp technology provides significantly longer life than other illumination methods
- Four-beam technology offers continuous compensation for lense fouling reducing the need to service optics
- Integral switched output reduces the complexity of integration into a plant process by controlling the output to a user programmable set point of 5 NTU.

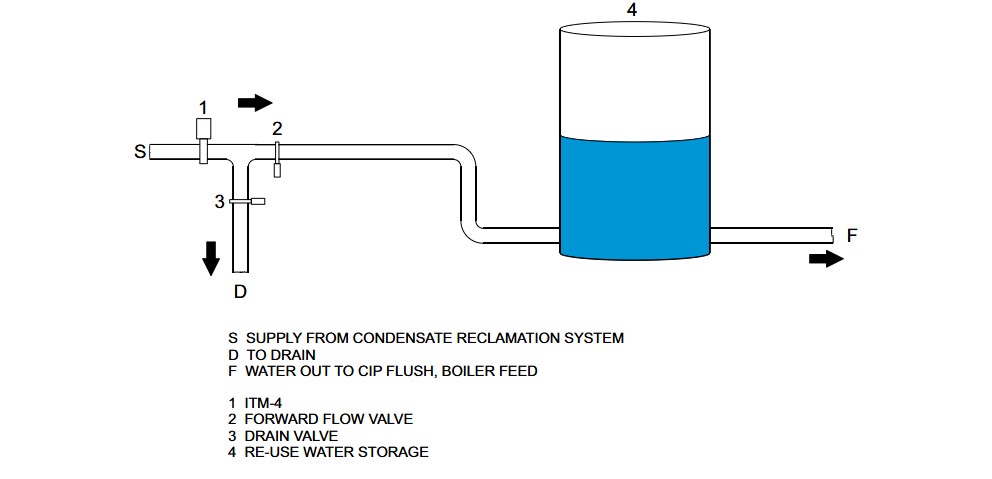

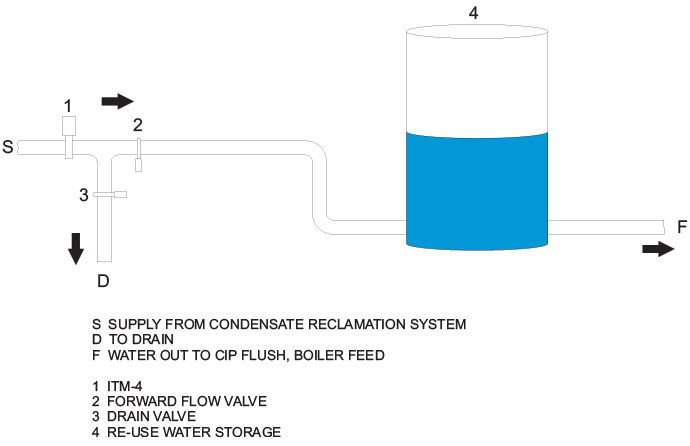

Application Drawing
Products Used
Food & Beverage ITM-4 Four-Beam Turbidity Sensor Turbidity Sensors Process Analytics
