SW/CT Life Sciences RTDs and Temperature Transmitters

Temperature Sensors

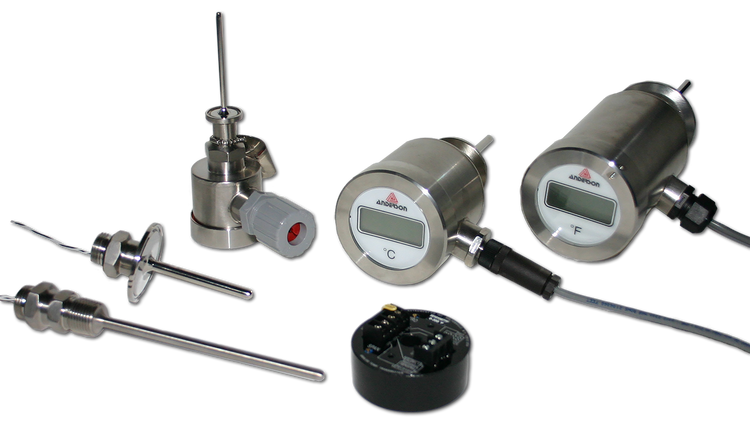

The SW modular series RTD elements can be supplied in both stand alone configurations or conduit wiring housing. Constructed entirely of 316L grade stainless steel with all product contact surfaces electropolished except well fittings.
All elements are provided with a permanently engraved stainless steel tag and a certificate of calibration and conformance.

Configure sensor
Product Information:
English

Technical Specification

Process Connection Tri-Clamp │ APC "K" │ Cherry-Burrell │ Bi-Metal Well | Spring Loaded │ Flush versions
Insertion length 1-1/8" to 9"
Wetted material 316L SS, Ra 8 micro-inch electropolished
Measuring range -50 to 180°C
Accuracy 0.1% of calibrated span, linearized

Download

Product Information:
English
User manuals:
Manual: Sanitary Wiring Head RTD's & Temperature Transmitters Manual: RTD's With Sealed Cable Or QDR
Product Resource (Technical Information):
Tech Bulletin: RTD With Quick Disconnect Receptacle

Spare Parts

29057A0001 1/2" 14Npt Bushing
29057A0002 3/4" 14Npt Bushing
