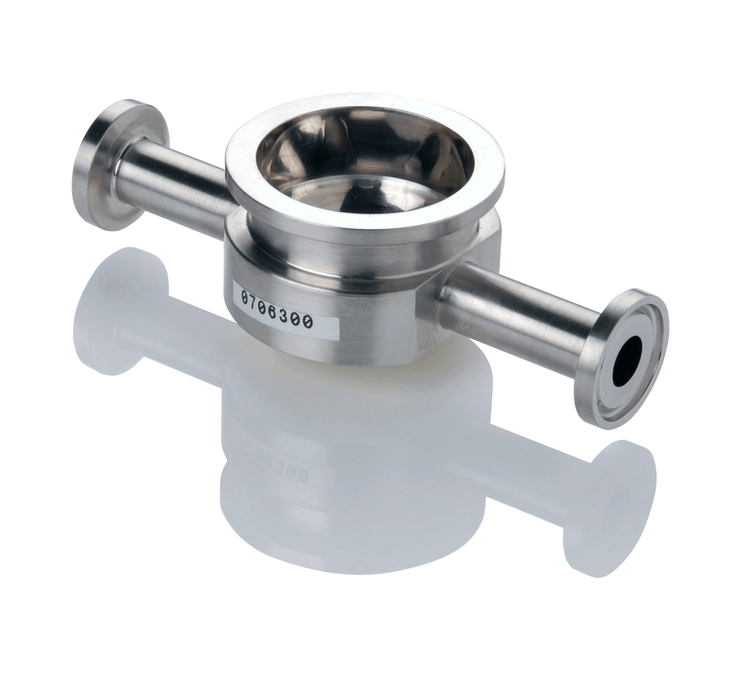

CPM Gap-free Process Connection
CPM is a gap free, front flush pressure process connection for pipes with small diameters from 1/4″.
For high-precision and hygienic pressure measurement, the pressure diaphragm must be integrated into the process as flush as possible and without dead space. This is a particular challenge for pipes with small nominal diameters.
Here, the CPM installation system offers a process connection that is easy and safe to install and offers unique advantages due to its special design.
- Zero dead-leg installation with perfect diaphragm position – Due to the design of the CPM adapter and the extension of the sensor nozzle, the pressure diaphragm sits inline precisely at the height of the media feed-through
- Pressure sensors with standard sizes – Pressure sensors with standard diaphragm diameters of 22 or 38 mm are also used for the smallest nominal pipe diameters from ¼”. Measurement tolerances such as those for smaller diaphragm diameters are avoided by design
