The TS Temperature Sensor series has been upgraded — now more compact, more versatile, and ready for even broader application use.
With 12 new process connections, a redesigned compact head, and simplified field connectivity, the latest generation unlocks expanded installation options while maintaining the proven reliability the TS series is known for.

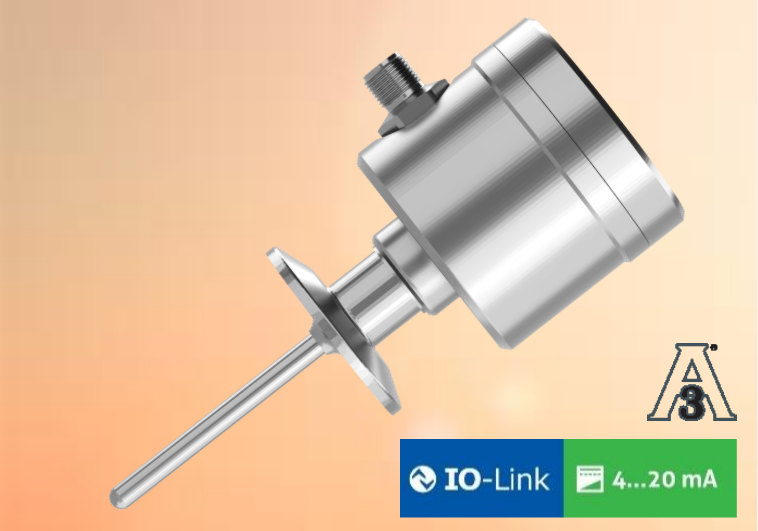

The updated TSBA (Compact version) and TSMA (Mini version) are now available with significant technical enhancements. The addition of 12 new process connections makes the TS series an ideal replacement solution for a wide range of existing temperature sensors.
The new compact head design simplifies installation and improves field connectivity — delivering greater flexibility without compromising durability or performance.
Key Features & Technical Highlights:
- One temperature sensor platform for virtually all applications
- Flex-Hybrid Technology with digital and analog interface (IO-Link + 4–20 mA)
- Modular design: configurable step-by-step from an economical base version to a high-end model
- Available with up to two integrated transmitters
- Vertical or horizontal head orientation
- Optional LCD display with programming function
- Insertion length from 1 to 43 inches
- Slim sensor tip for faster response time
- Protection class IP69K for maximum application safety
- Two-point calibration via offset and span
With its flexibility, performance, and unmatched reliability, the new TS series sets a new benchmark in temperature measurement.
Explore all details about the new TS upgrades in the attached documents or visit our new website and Partner Portal for comprehensive information.
